Untangling a comms room and putting structured cabling back in

Why low voltage is the part that gets neglected

Power wiring is inspected. Somebody signs it off, and if it is wrong there are consequences that are easy to understand. Low voltage cabling mostly is not, and the result is that it becomes the one system in a building that nobody owns.

It also fails differently. A bad power connection eventually announces itself with heat or a trip. A bad data connection just makes things slow and intermittent, and the blame lands on the software, the internet provider, the switch, anything except the cable. We have been called to plenty of network problems that were a cable stapled too tight or a run laid along a fluorescent ballast for twenty feet.

The third reason is that it is genuinely cheap to do badly and only slightly more expensive to do properly, so it is the easiest corner to cut when a project runs long. That is also why a rebuild pays for itself faster than people expect.

What structured actually means

Structured cabling is not a brand or a product. It is a layout discipline. Every outlet in the building runs back to one place. Nothing is daisy chained. Nothing is spliced in a ceiling. Every run is terminated on a patch panel at the room end and a jack at the outlet end, and the only thing you ever touch afterwards is a patch cable.

The reason that matters is not neatness. It is that a fault becomes a bounded problem. If a socket is dead you know exactly which port it lands on, you can swap a patch lead in ten seconds to prove where the fault is, and you have not disturbed anything else in the process.

In the room itself the same logic applies vertically. Patch panels and switches alternate so patch leads run short distances. Horizontal managers take the slack. Power and data are separated. Nothing sits on the floor. None of this is expensive at the time it is being built, and all of it is expensive to retrofit.

• Every outlet home runs to one room, no daisy chains and no mid span splices
• Terminated on patch panels at one end and jacks at the other
• Switches and panels interleaved so patch leads stay short
• Power and data separated, crossing at right angles where they must meet
• Both ends of every cable labelled with the same identifier

The physical rules that get broken most

Twisted pair cable performs because the pairs are twisted at a controlled rate and held in a controlled geometry. Everything that deforms that geometry costs performance, and the damage is usually done during installation rather than later.

Bend radius is the first. A cable pulled hard around a sharp corner or bent tight into a box is degraded permanently even though it still tests as connected. Cable ties are the second. Anything tight enough to indent the jacket has already compressed the pairs underneath it. Velcro exists for this reason and costs almost nothing.

Pull tension is the third and least visible. Pulling a bundle through a long run with too much force stretches the cable and changes its characteristics along its whole length. The failure mode from all three is the same: it works, it passes a basic continuity check, and it produces intermittent errors under load that nobody ever traces back to the day it was installed.

Separation from power is the fourth. Running data parallel to a power circuit for a long distance, particularly near anything with a drive on it, injects noise. The practical rule is to keep them apart and cross at right angles when you cannot. In a plant that becomes a much bigger issue, because the drives themselves are the noise source, which is covered in instrument racks and process signal wiring and in our control panel and machine wiring work.

What else lives on this cabling now

A comms room in 2026 is not just computers. Cameras, door access, wireless access points, thermostats, occupancy sensors, audio, time clocks and increasingly the building controls all run over the same infrastructure, and most of them are powered over it as well.

Power over Ethernet changed the requirements in a way a lot of older installations never accounted for. A bundle carrying current in every cable heats up in the middle of the bundle, and heat raises resistance and reduces the length a run can support. Large tightly packed bundles of PoE cable in an unventilated space are a real problem rather than a theoretical one.

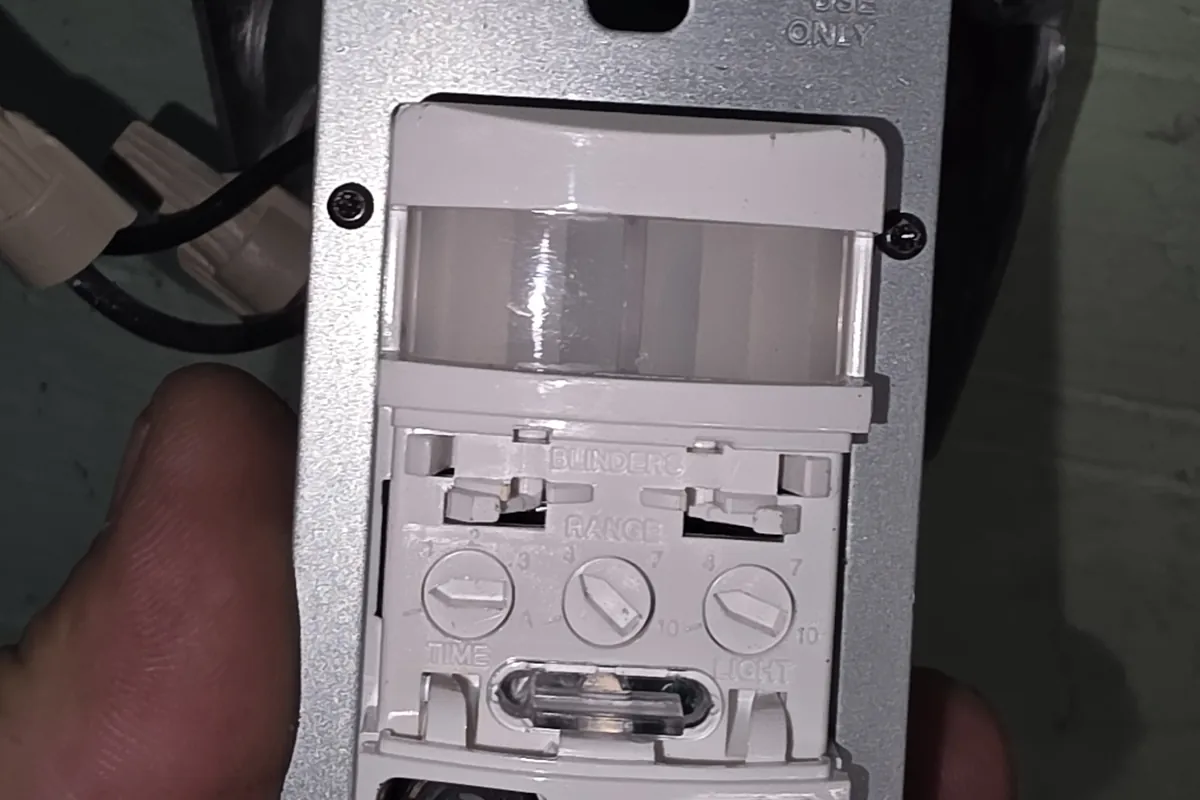

The second photograph is the other end of the same system: a sensor at an outlet position. Occupancy sensing, daylight control and scheduled lighting all depend on low voltage wiring being right, and a lighting control scheme that misbehaves is nearly always a wiring or commissioning problem rather than a product problem. That side of it connects directly to office remodel power and lighting.

Doing the rebuild without stopping the business

Nobody can switch a working building off for a week, so a comms room rebuild is done in overlapping stages. New panels and managers go in alongside the old ones. Runs are re terminated in groups, tested, labelled and cut over a few at a time, usually outside working hours. The old equipment comes out last.

The single most valuable part of the work is the part with no visible result: labelling both ends of every cable with the same identifier and leaving a record of what lands where. A room that is beautifully dressed but unlabelled will be back to a tangle within two years, because the next person to add something will have no way to do it correctly.

The same staging logic applies to any work in a building that cannot stop, and it is the same discipline as working inside a planned production shutdown, only spread over several evenings instead of one weekend.

Where this work applies

Offices are the obvious case, but the fastest growing demand is on farms and in plants. A modern poultry house is full of controllers, sensors and alarm circuits that have to reach somewhere, and that network is as critical as the power feeding the fans. The reasoning there is set out in poultry house ventilation and controller power.

Warehouses need coverage for scanners and cameras across a large area with a lot of steel in the way. Plants need reliable signal paths in electrically hostile environments. Retail needs point of sale and cameras that do not drop during trading.

In every case the pattern is the same. The cabling is a small fraction of the cost of the systems that depend on it, and it is the layer that everything else fails through. Our low voltage, controls and monitoring work exists because doing it properly once is much cheaper than diagnosing it forever.
